Solar Energy Measurement Solutions

Solar energy is certainly one of the most important renewable energies available, and we use it under two forms: thermal and photovoltaic. The Solar Energy Measurement System (SEMS) developed by GEONICA is the most advanced technical solution for the measurement of all the components of Solar Radiation:

  • Direct Normal Irradiance (DNI)
  • Global Horizontal Irradiance (GHI)
  • Diffuse Horizontal Irradiance (DHI)
  • Global Normal Irradiance (GNI)

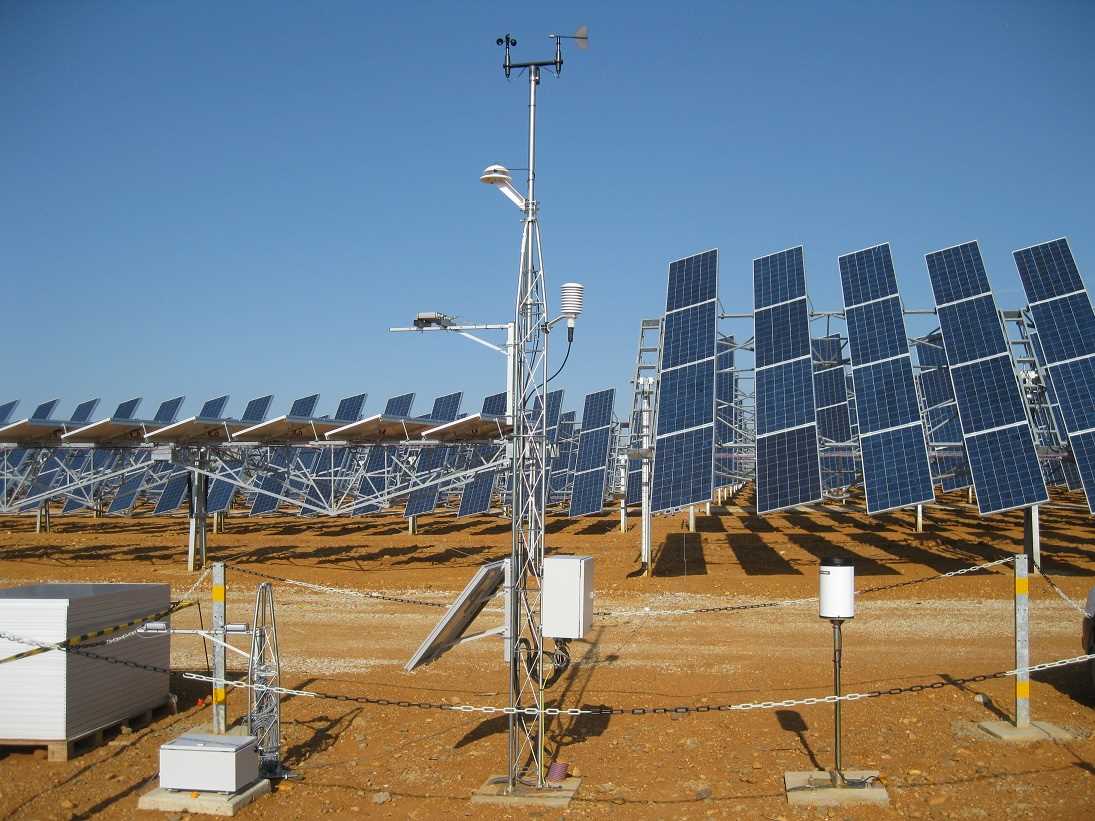

    • For solar energy resource assessment purposes and solar power plant monitoring, generally it is required to measure all the three components of the Solar Irradiance: DNI, GHI, DHI plus optionally GNI. This is made by the Remote Solar-Meteo Stations of the SEMS System, consisting of one METEODATA Data Logger, a Sun Tracker with Shadow Arm/Disc, plus one or two Pyrheliometers and one or two Pyranometers.
    Additionally, Solar Spectral Irradiance (SSI), plus AOD, Ozone and Water vapour columns can be obtained.

    Solar Energy Measurement System (SEMS)

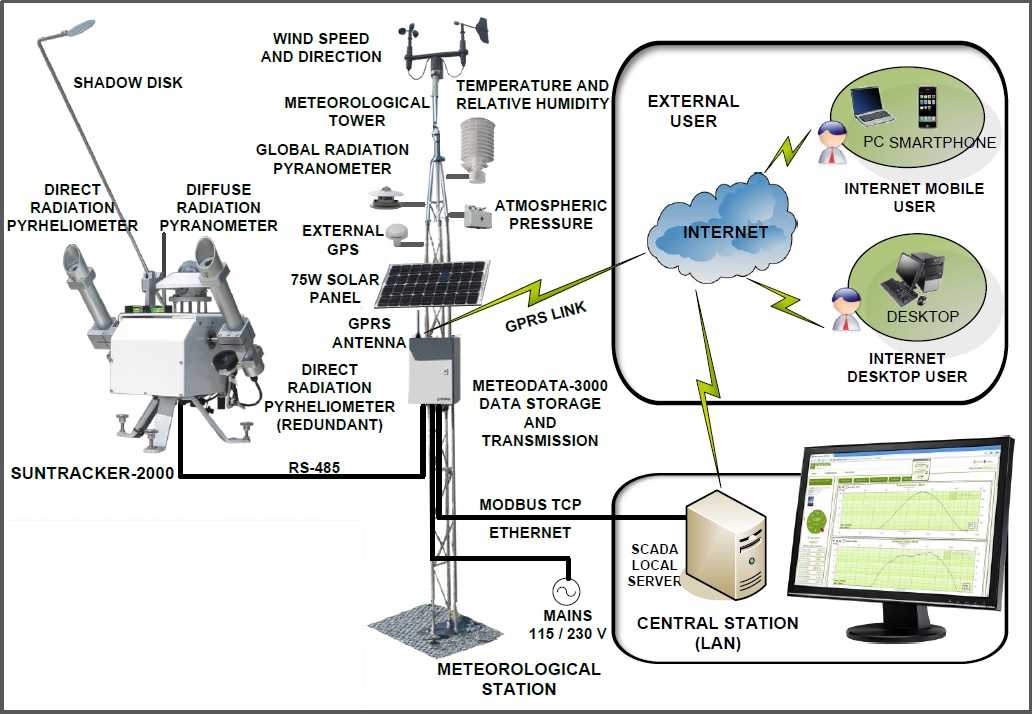

    GEONICA introduces the SEMS-PV/2000/3000 Solar Energy Measurement System, a turnkey integral solution for measuring the sun power, that is, the solar energy resource, as well as for the remote monitoring and efficiency analysis of solar power plants, thermal or photovoltaic, in real-time, via Internet.

    Brochure

    Our SEMS-PV/2000/3000 Solar Energy Measurement System is the most advanced technical and cost efficient solution for solar energy resource assessment available in the world market today. SEMS-PV/2000/3000 is also the necessary tool for the measurement of Direct Normal Irradiance (DNI), Global Horizontal Irradiance (GHI) and Diffuse Horizontal Irradiance (DHI) to be used as a precise incoming energy reference during the operation of Concentrating Solar Power Plants (CSP), Concentrated Photovoltaic Solar Power Plants (CPV) and Photovoltaic Solar Power Plants (PV).

    Sun tracker Solar resource assessment is the first objective to be covered, in order to determine, during a certain time, the site conditions regarding the available solar energy. So the SEMS-PV/2000/3000 System has been designed for allowing the measurement of all solar radiation parameters, such as: Direct Normal Irradiance (DNI), Global Horizontal Irradiance (GHI) and Diffuse Horizontal Irradiance (DHI), by means of highly sensitive Pyranometers and Pyrheliometers supported by very precise solar trackers. The SEMS-PV/2000/3000 System has been designed around the Remote Data Acquisition and Transmission Unit, Series METEODATA, working as a data logger and, at the same time, as a very precise Solar Tracker Controller. The marriage of the METEODATA Data Logger and the SunTracker-2000/3000 working together, is a unique and exclusive symbiosis solution, which allows profiting all the functionalities of the optional Automatic Diagnosis and Alarm Software (ADAS-3000 option). The ADAS-3000 software installed at the data logger, is monitoring in real-time the measured values of the main three solar irradiance parameters (DNI, GHI and DHI), supervising also the results of the local running algorithms that are in charge of the Sun Tracker operation This automatic diagnosis detects in real time any reason of inconsistence of the solar parameters, due to:

  • Dirt deposition in the domes of the Pyranometers or in the glass filters of the Pyrheliometers.
  • Degradation of the solar sensors or incorrect calibration constant.
  • Wrong leveling of the Sun Tracker.
  • Misalignment of the Pyrheliometer mounted on the sun tracker.
  • Incorrect operation of the Astronomical algorithm.

    • Sun tracker Besides the measurement of the solar radiation, the METEODATA unit allows the connection of other additional meteorological sensors. For instance, a wind sensor and a hail detector will offer valuable information for repositioning solar panels, in order to protect them in case of gusts of wind or severe thunderstorms with hail precipitation.

    SEMS-PV/2000/3000 System offers direct connection with SCADAs or remote monitoring for retrieving data or reporting site conditions via GPRS/3G cellular network, radio link, satellite, Ethernet, etc., as well as via INTERNET by means of the WEBTRANS Ubiquitas Internet Platform (Web Posting).

    Once the solar plant is in operation, other three fundamental issues are covered by the SEMS-PV/2000/3000 System:

  • Real-time monitoring of all the main or critical plant parameters. This will provide the possibility of a quick identification of failed components or abnormal operation conditions of the plant.
  • An efficient remote alarm management procedure by means of urgent transmission of SMS alert messages to cellular phones and e-mails to central computers, in order to minimize the troubleshooting efforts and to prevent damages in key plant components.
  • On-line and Off-line analysis of the plant efficiency, in order to know the overall performance of the thermal or photovoltaic installation.

    • These three issues will allow enlarging the operative life of the plant and, at the same time, to ensure the maximum investment profitability.

    Our Solar Solutions

    GEONICA offers several solutions for the solar market

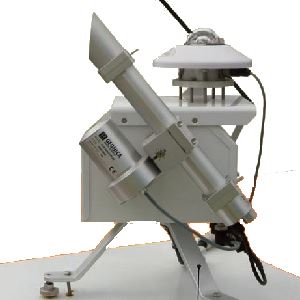

    SunTracker
    2000 & 3000

    High accuracy and reliability for solar direct and diffuse irradiance for solar plants

    Brochure

    Sun tracker

    GEO-SSIM Solar Spectral Meter

    The perfect marriage between a solar spectral irradiance meter and a solar tracker

    Brochure

    Sun tracker

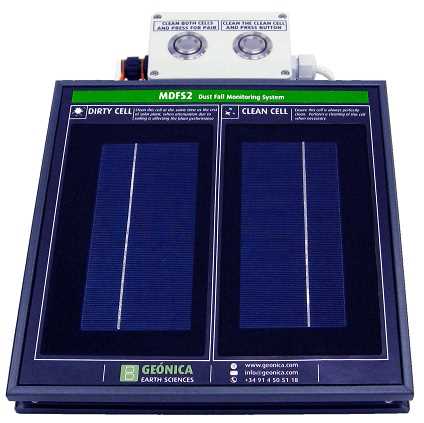

    GEO-MDFS2 Soiling Measurement

    Automatic Soiling Monitoring System that determines the soiling index for solar PV plants

    Brochure

    Sun tracker

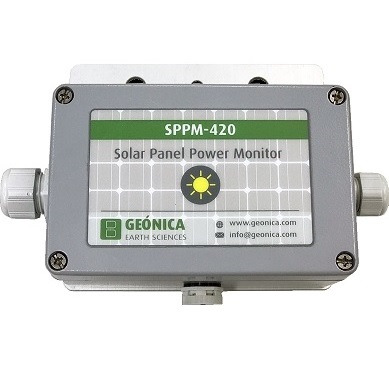

    SPPM-420 ISC, VOC Measurement

    Solar Panel Power Monitor with 4-20 mA Output of Reference Solar PV Panels

    Brochure

    Sun tracker
